Electrical specifications
Number of output channels		2/3
Total output power		max. 66 W/100 W
Maximum output power per channel		33,6 W
Output voltage per channel		0 V to 32 V
Maximum output current per channel		3 A
Voltage ripple and noise (20 Hz to 20 MHz)		typ. < 1.5 mV (RMS)
		< 20 mV (peak-to-peak) (meas.)
Current ripple and noise (20 Hz to 20 MHz)		< 2 mA (RMS) (meas.)
Load recovery time^*1)		< 200 ?s (meas.)
Programming/readback resolution	Voltage	10 mV
	Current	1 mA
Readback accuracy (± (% of output + offset))	Voltage	< 0.1% + 20 mV
	Current	< 0.1% + 5 mA
Special functions
Measurement functions		voltage, current, power, energy
Protection functions		OVP, OCP, OPP, OTP
FuseLink function		●
Fuse delay at power-up		●
Sense function		-
Sink mode		-
Output sequencing		-
Trigger input/output		-
Arbitrary function		● (EasyArb)
Analog/modulation interface		?
Data logging		-
Display and interfaces
Display		3,5" QVGA

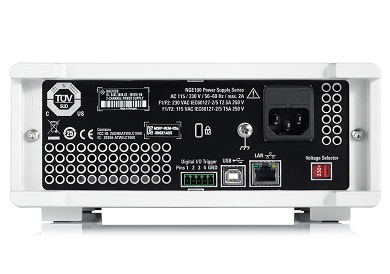

Rear panel connections
Remote control interfaces		standard: USB; optional: LAN, WLAN
General data
Dimensions (W × H × D)		222 × 97 × 310 mm
Weight		4.9 kg/5.0 kg
Rack installation		R&S?HZC95 option
^*1) 10% to 90% load change within a band of ± 20 mV of set voltage.
