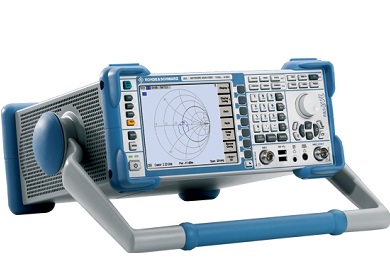

ZVL (Network+Spectrum Analyzer)

주요 스펙

Frequency Range
  • :9 kHz to 3 / 6 / 13.6 GHz
Output Power
  • :10 dBm
Dynamic Range
  • :Typ. > 123 dBm
Number of Point
  • :2 to 4001
Battery
  • :Yes
Key Facts

 - Optional spectrum analysis and digital communications standards
 - Bidirectional test set for displaying all four S-parameters
 - ZVL3-75: 75 Ω vector network analyzer for TV and CATV measurements
 - Multitrace display for displaying all relevant parameters
 - Distance-to-fault measurement for detecting cable faults
 - Time domain analysis
 - USB connector for R&S?NRP-Z power sensor series for precise power measurements
 - Internal battery and 12 V DC operation
 - Small, compact, lightweight and portable (< 7 kg)
　
?구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482?　

Brief Description
 - The ZVL is a cost-efficient, powerful, and portable network analyzer in the compact class,
   and is therefore ideal for use in development, production, and service. It is the only instrument
   to combine the functions of a network analyzer, spectrum analyzer, and power meter in a single box,
   and will thus tremendously increase your work efficiency.


Features & Benefits
 - Full one-port (OSM), full two-port (TOSM), and one-path two-port calibration
 - Measurement of S-parameters, impedance, admittance, and stability
 - Output of results as Smith chart, inverted Smith chart, magnitude and phase, polar diagram, real, imaginary, group delay, VSWR
 - Unlimited number of traces and channels; overlay display of traces also of different channels in a single diagram
 - Trace evaluation: max, min, peak-to-peak, RMS, mean, standard deviation, electrical length, phase delay
 - Bandpass filter evaluation in terms of center frequency, bandwidth, ripple, quality factor, attenuation, etc.
 - Optional spectrum analyzer functionality (ZVL-K1) with full network analyzer capability available at the same time
    Limited by available RAM capacity


Supported Technologies with ZVL-K1

 - 3GPP FDD BTS (+ FSL-K72)
 - WLAN IEEE 802.11a/b/g/j (+ FSL-K91)
 - WiMAX2 IEEE 802.16 OFDM/OFDMA (+FSL-K93)
    WiMAX is a trademark of the WiMAX Forum
Specifications
Network Analysis
Frequency range 9 kHz (typ. 5 kHz) to 3 GHz/6 GHz/13.6 GHz
Measurement time (201 test points at 100 kHz IF bandwidth, with normalization calibration)
<50 ms
Data transfer time (201 test points)
Via RSIB over 100 Mbit/s LAN 1.5 ms
Dynamic range at 10 Hz measurement bandwidth (20 MHz to 3 GHz) >115 dB, typ. 123 dB (ZVL3,ZVL6)
> 100 dB, typ. 105 dB (ZVL13)
Output power range ?50 dBm to 0 dBm, typ. ?60 dBm to +10 dBm (ZVL3, ZVL6 and ZVL3-75)
Measurement bandwidths 10 Hz to 500 kHz in 1/2/5 steps
Trace noise < 0.005 dB (rms above 10 MHz)
Receiver step attenuators (maximum nominal input power) 0 dB to 30 dB
Number of channels, diagrams, traces >1001)
Number of test points per trace 2 to 4001
Operating system Windows XP Embedded
Weight (without battery) <7 kg (15.43 lb)
1) Limited by available RAM capacity


Spectrum Analysis (ZVL-K1 option)
Frequency range 9 kHz to 3 GHz/6 GHz/13.6 GHz
Frequency uncertainty 1 × 10?6
  With  FSL-B4 option 1 × 10?7
Resolution bandwidths
  Standard 300 Hz to 10 MHz in 1/3 steps, 20 MHz at zero span
  With FSL-B7 option (1 Hz) 10 Hz to 10 MHz in 1/3 steps
Video bandwidths 10 Hz to 10 MHz
I/Q demodulation bandwidth 20 MHz
SSB phase noise at 500 MHz typ. ?103 dBc (1 Hz) at 10 kHz carrier offset
Displayed average noise level
  Without preamplifier at 1 GHz
   With preamplifier at 1 GHz
Third-order intercept (TOI) >+5 dBm, typ. +12 dBm
Detectors max/min peak, auto peak, rms, quasi peak, average, sample
Level measurement uncertainty (95% confidence level) <0.5 dB
R&S?ZVL Vector Network Analyzers
Frequency range: 9 kHz to 3 GHz/6 GHz/13.6 GHz.
75 Ω version: 9 kHz to 3 GHz.
Portable network analyzers with optional spectrum analyzer in one unit

Hardware Options
 - FSL-B4         OCXO Reference Frequency
 - FSL-B10       GPIB Interface
 - FSL-B30       DC Power Supply, 12 V to 28 V
 - FSL-B31       NiMH Battery Packrequires FSL-B30

Hardware Options requiring ZVL-K1

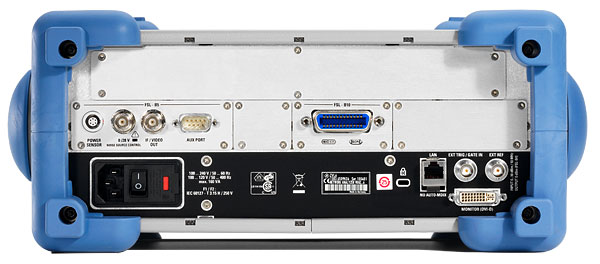

 - FSL-B5       Additional Interfaces video out, IF out, noise source control, AUX port, connector for the R&S?NRP power sensors
 - FSL-B6       TV Trigger
 - FSL-B7       Narrow Resolution Filters 10 Hz to 300 Hz
 - FSL-B8       Gated Sweep Function
 - FSL-B22       RF Preamplifier 3 GHz/6 GHz

General Accessories
 - Accessories         Overview of Accessories for Network Analyzer from Rohde & Schwarz
Software Options
  • R&S?ZVL-K1 Order No. 1306.0301.02
    Spectrum Analysis for R&S?ZVL
    (enabled by key code)
  • R&S?ZVL-K2 Order No. 1306.0101.02
    Distance-to-Fault Measurement
    (enabled by key code)
  • R&S?ZVL-K3 Order No. 1306.0201.02
    Time Domain Analysis for R&S?ZVL


Software Options requiring R&S?ZVL-K1
 - FSL-K7 Order NoAM/FM/φM measurement demodulator
Analysis Software
Recommended Extras
  • R&S?ZZA-S334 Order No. 1109.4487.00
    19" Rack Adapter
    For mounting a 3/4 19" housing 3 RU high in a standard 19" rack
  • R&S?FSL-Z3 Order No. 1300.5401.00
    Soft Carrying Bag
  • R&S?FSL-Z4 Order No. 1300.5430.02
    Additional Charger Unit
