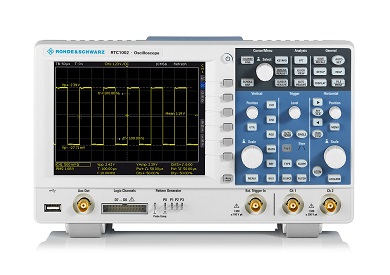

RTC1000 시리즈 오실로스코프
주요 스펙
- 대역폭
-
- :50 MHz / 70 MHz / 100 MHz / 200 MHz / 300 MHz
- 샘플링속도
-
- :2 Gsample/s
- 메모리깊이
-
- :2 Mpts
- 수직축범위
-
- :1 mV/div to 10 V/div
- 인터페이스
-
- :USB, LAN
[비교자료] 로데슈바르즈 RTC1000 시리즈 vs 키사이트 1000X

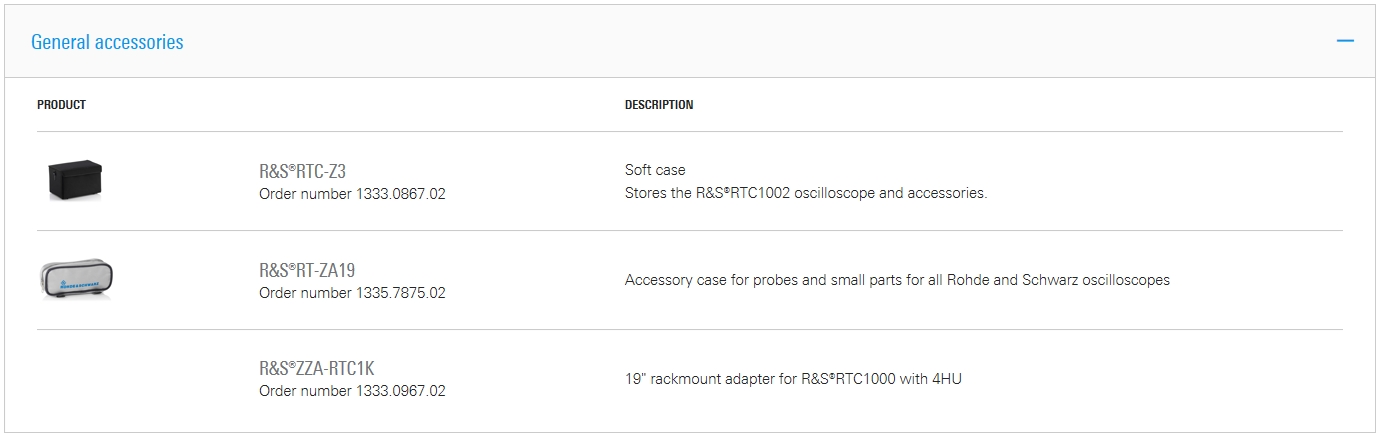

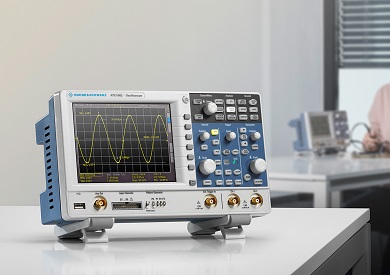

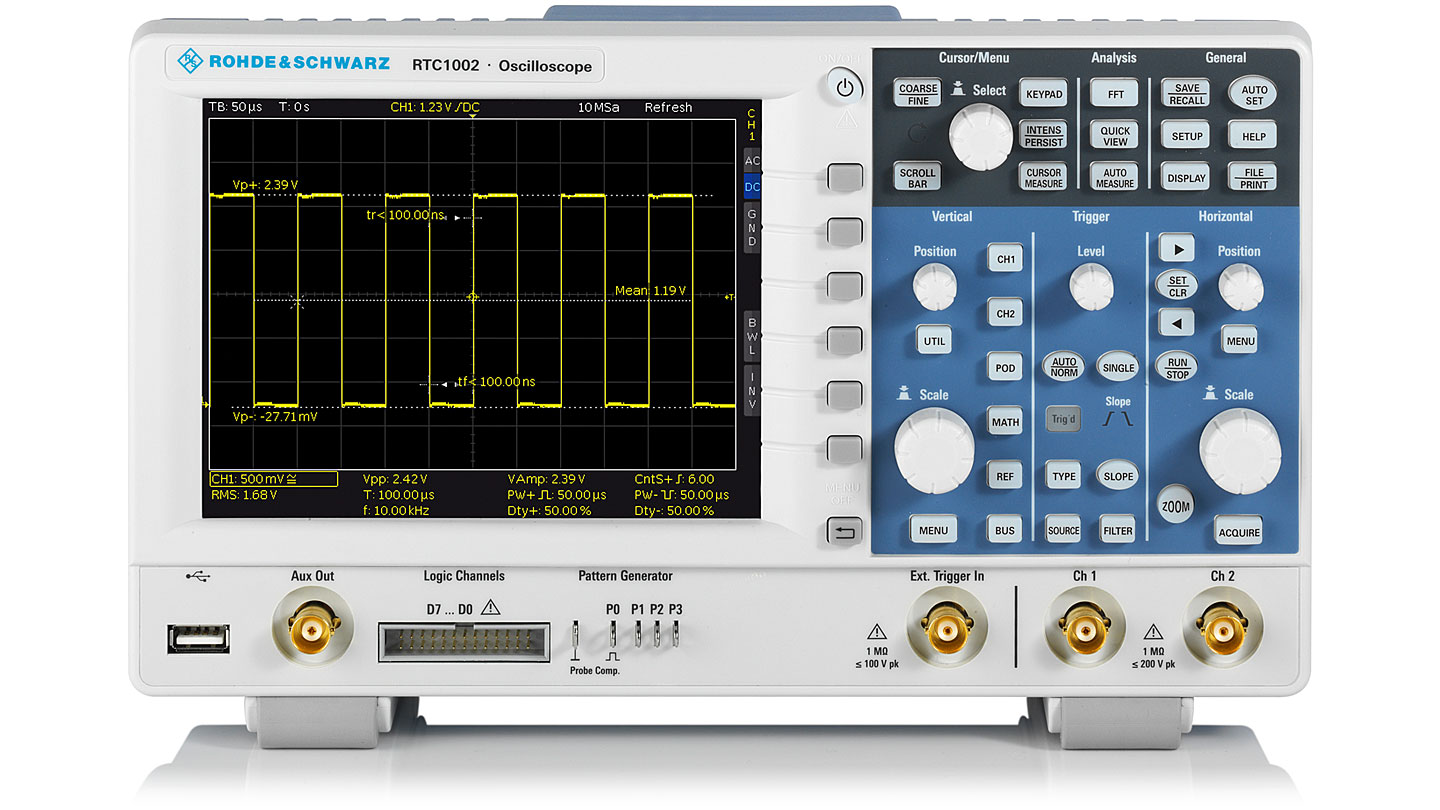

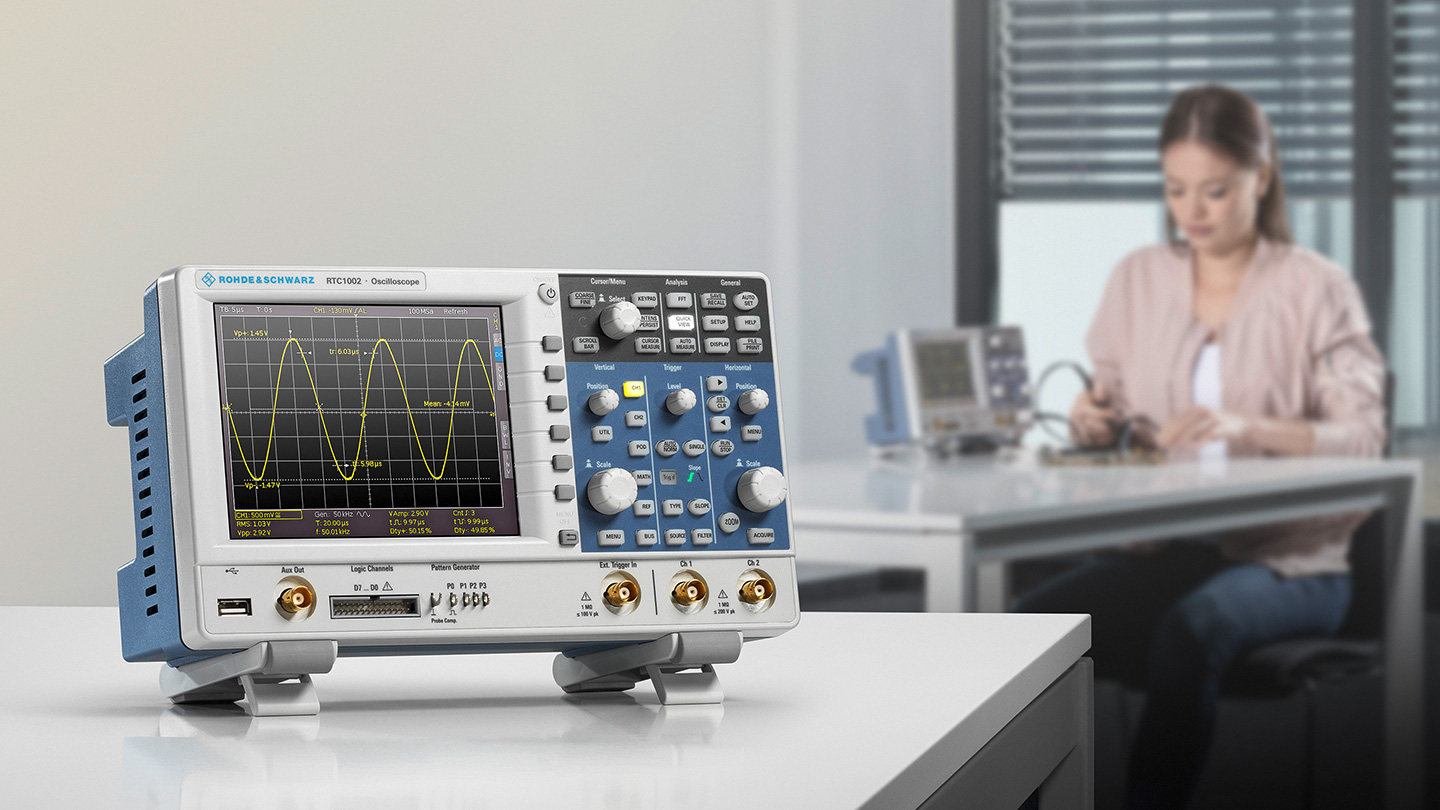

RTC1000 시리즈 오실로스코프
- 2 Gsample/s 샘플링, 2 Msample 메모리
- 수직축 분해능 down to 1 mV/div

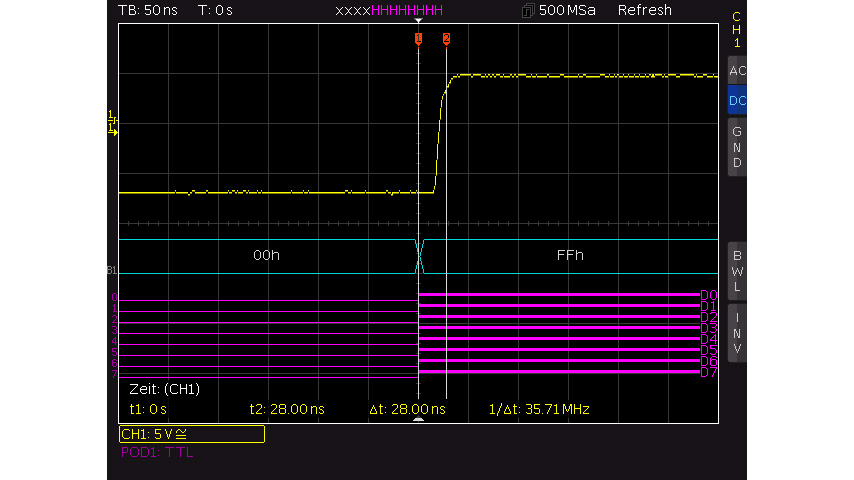

- MSO 로직분석기능

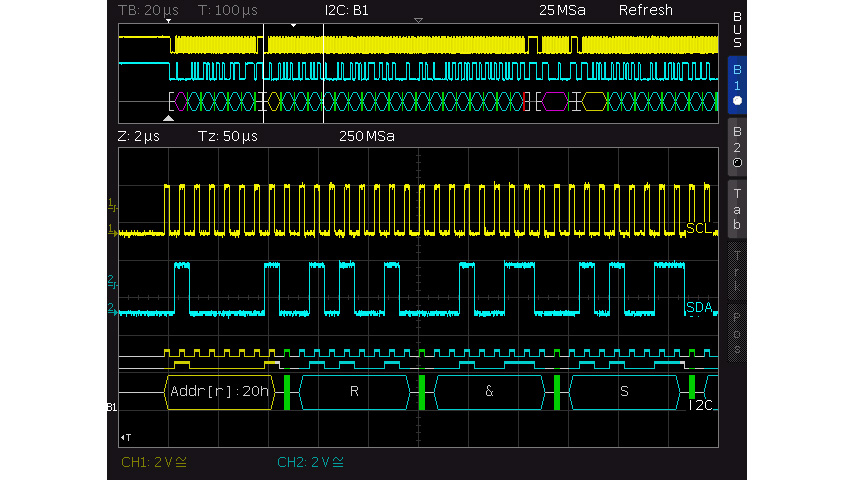

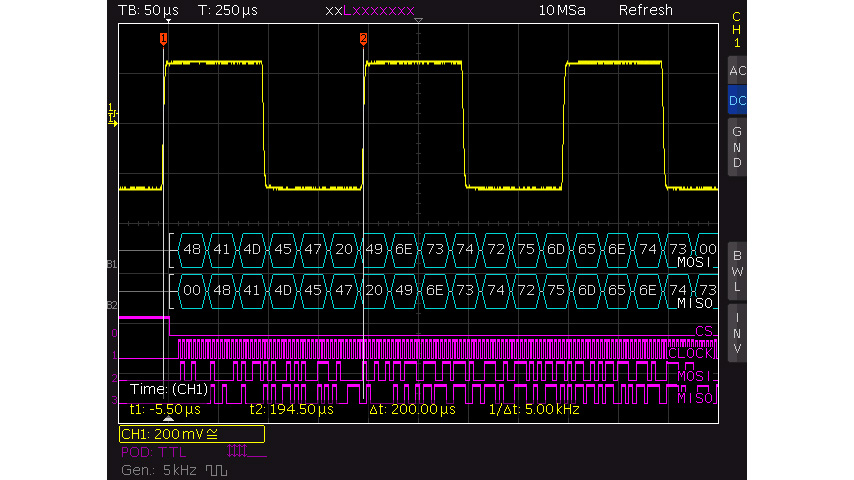

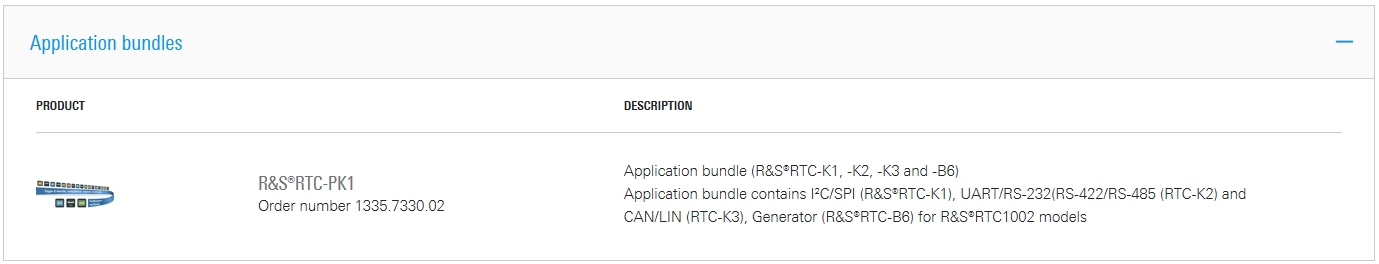

- 하드웨어기반의 시리얼버스 트리거링 및 디코딩
- 패턴제너레이터 up to 50 Mbit/s 와 펑션제너레이터 up to 50 kHz
- 오실로스코프를 사용한 디지털 볼트미터
- 자동 측정 기능
- QuickView: 원버튼으로 모든 결과값 도출

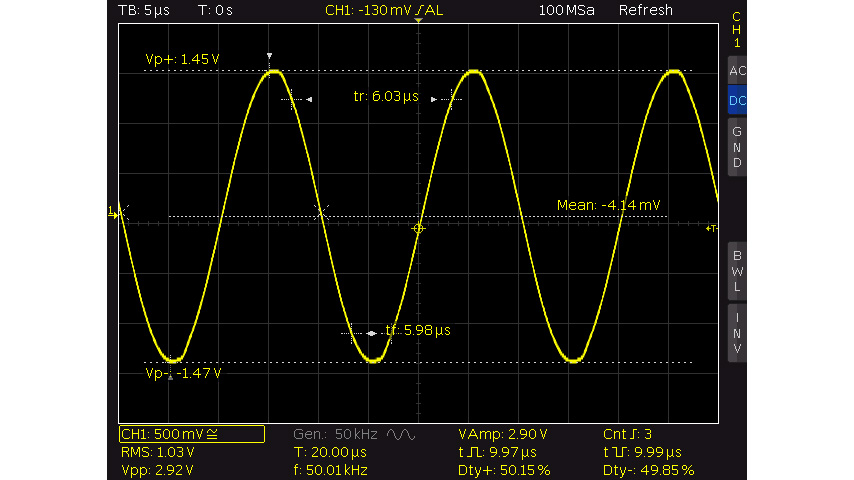

- FFT: 손 쉬운 스펙트럼분석기능
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.comVertical system
| ||
| Number of channels | 2 | |
| Bandwidth |
RTC1002 (with RTC-B220/-B221/-B222/-B223) | 50 MHz, 70 MHz, 100 MHz, 200 MHz, 300 MHz |
| Rise time (calculated) | RTC1002 RTC-B220/-B221/-B222/-B223) | 7 ns, 5 ns, 3.5 ns, 1.75 ns, 1.15 ns |
| Input impedance | 1 MΩ ± 2% || 14 pF ± 2 pF | |
| Input sensitivity | max. bandwidth in all ranges | 1 mV/div to 10 V/div |
| DC gain accuracy | offset and position = 0, maximum operating temperature change of ±5°C after self-alignment | |
| input sensitivity all ranges | 3% | |
|
Acquisition system
| ||
| Maximum realtime sampling rate | 1 Gsample/s; 2 Gsample interleaved | |
| Acquisition memory | 1 Msample; 2 Msample interleaved | |
| Horizontal system | ||
| Timebase range | 1 ns/div to 100 s/div | |
| Trigger system | ||
| Trigger types | standard | edge, width, video (PAL, SECAM, PAL-M, SDTV, HDTV) pattern, timeout |

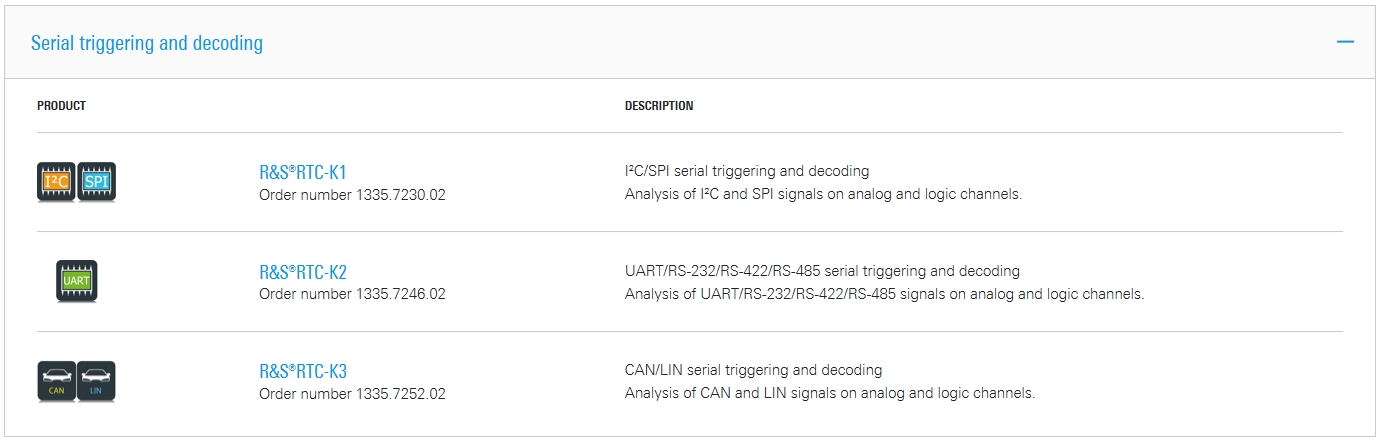

| option | I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN | |
|
Analysis and measurement functions
| ||
| QuickView | at the push of a button, internal measurement values are written directly onto the waveform and updated continuously | peak-to-peak voltage, pos./neg. peak, rise/fall time, mean value, RMS value, time, frequency |
| Automated measurements | burst width, count positive/negative pulses, count falling/ rising edges, mean value, RMS cycle, RMS, mean cycle, peak±, frequency, period, amplitude, base level, pos./neg. overshoot, pulse width, duty cycle±, rise/time, delay, phase | |
| Waveform mathematics | addition, subtraction, multiplication, division, FFT | |
|
MSO option
| ||
| Digital channels | 8 (1 logic probe) | |
| Sampling rate | 1 Gsample/s | |
| Acquisition memory | 1 Msample | |
|
Waveform generator option
| ||
| Resolution, sampling rate | 8-bit, 978 ksample/s | |
| Amplitude | high Z; 50 Ω | 60 mV to 6 V (Vpp); 30 mV to 3 V (Vpp) |
| DC offset | sine | 0.1 Hz to 50 kHz |
| pulse/rectangle and ramp/triangle | 0.1 Hz to 10 kHz | |
|
4-bit pattern generator option
| ||
| Programmable pattern | sample time | 20 ns to 42 s, up/down |
| memory depth | 2048 sample | |
| 4-bit counter | frequency | 100 mHz to 50 MHz |
| Square wave | frequency | 1 mHz to 500 kHz |
|
Digital voltmeter
| ||
| Measurements | DC, AC + DC RMS, AC RMS resolution | up to 3 digits |
|
Frequency counter
| ||
| Resolution | 6 digits | |
|
General data
| ||
| Screen | 6.5" VGA color display (640 × 480 pixel) | |
| Interfaces | 1 x USB host, USB device, LAN | |
| Audible noise | maximum sound pressure level at a distance of 0.3 m | 30.4 dB(A) |
| Dimensions | W × H × D | 285 mm × 175 mm × 140 mm (11.22 in × 6.89 in × 5.51 in) |
| Weight | 1.7 kg (3.75 lb) | |
