Clock Modules

HOME  >  제조사별  >  LUCEO (Optical)  >   Clock Modules
페이지정보 : 1 / 1

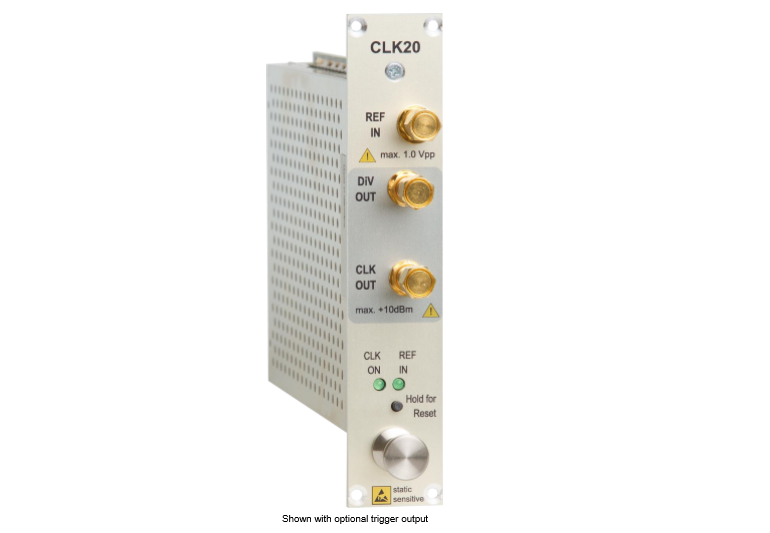

  • CLK20 (High speed clock source module)

    Frequency
    • :78.125 MHz to 20 GHz
    Amplitude
    • :-10 dBm to 0 dBm and 6 dBm
    Duty cyble
    • :45 ~55 %
    DCA Trigger output
    • :78.125 to 156.25 MHz (Option. 161)
    Jitter Modulation
    • :1 kHz to 80 MHz (Option. 154)

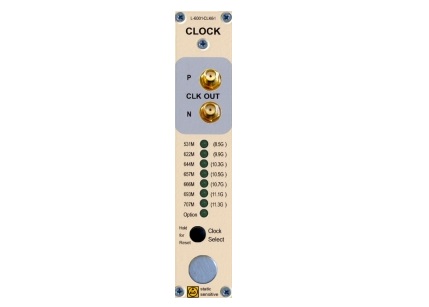

  • CLK6-2 (Clock source module)

    Data Rate
    • :50 MHz to 900 MHz
    Output level (싱글)
    • :550 mVpp to 950 mVpp
    Output level (차동)
    • :1100 mVpp to 1900 mVpp
    Phase jitter RMS
    • :0.26 to 0.27 ps
    Phase noise
    • :-97 dBc/Hz

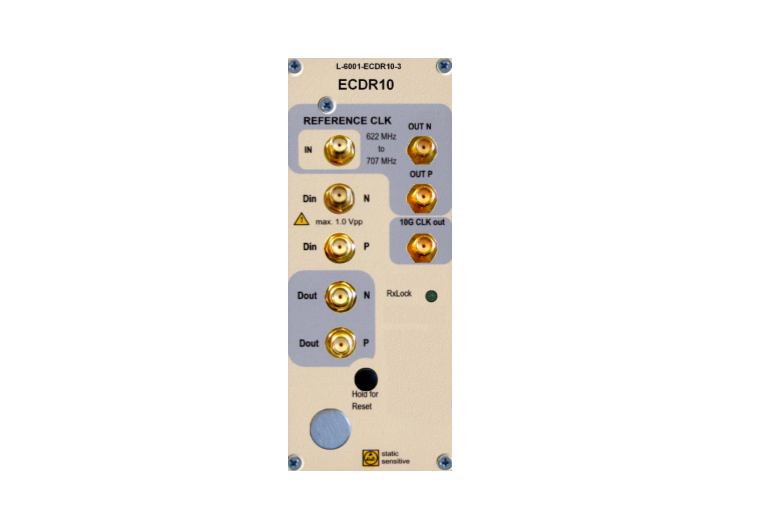

  • ECDR10-3 (Clock and data recovery)

    Data Rate
    • :9.95 Gbps to 11.32 Gbps
    Amplitude
    • :400 mVpp to 1600 mVpp
    Output Clock
    • :400 mVpp to 1200 mVpp (10 GHz)
    Output Jitter
    • :1.4 ps (rms)
    Pre-Emphasis
    • :0 - 8 dB

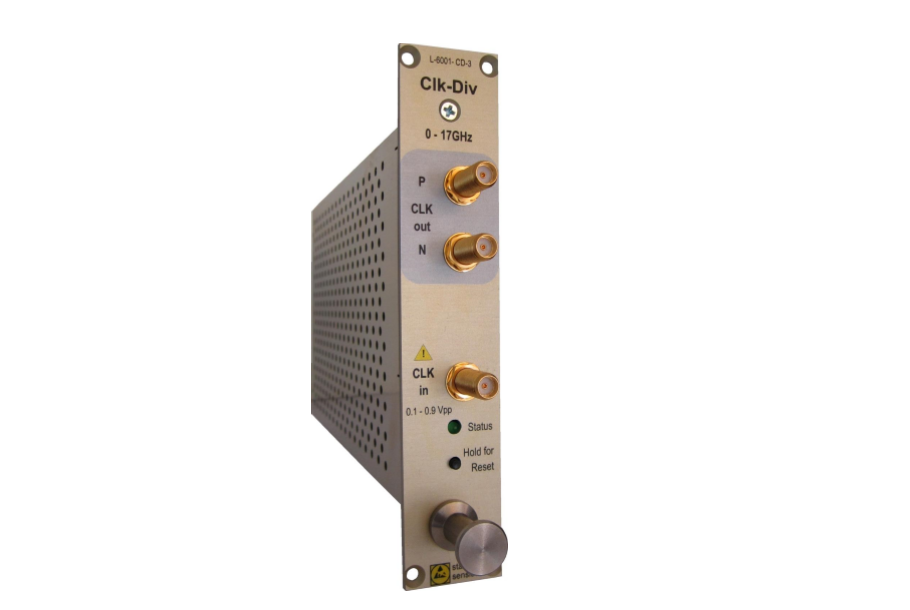

  • CLK-DIV (Clock Divider Module)

    Frequency (input)
    • :1 GHz to 17 GHz
    Frequency (output)
    • :3.8 MHz to 17 GHz
    Amplitude
    • :500 mV to 900 mV
    Clock Jitter rms
    • :0.8 ps
    Clock duty cycle
    • :45 ~55 %

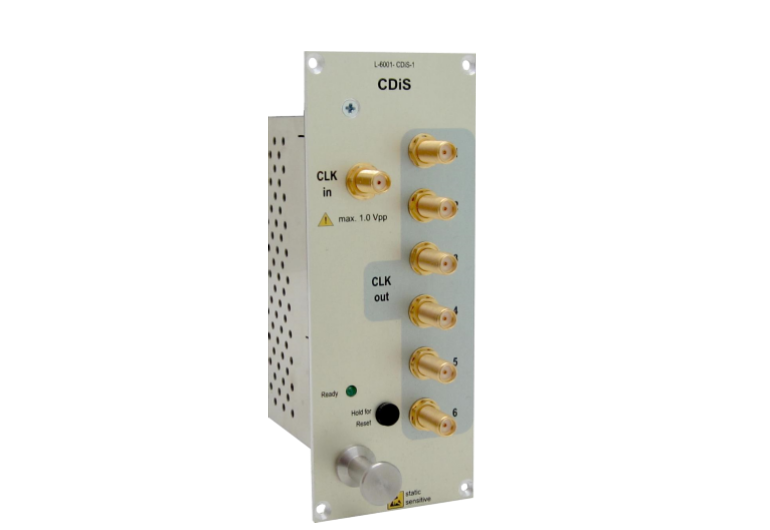

  • CDiS (Clock Distribution module)

    Input Frequency
    • :1 to 15 GHz
    Input Voltage
    • :300 mVpp to 600 mVpp
    Jitter RMS
    • :1 ps
    Jitter p-p
    • :2 ps
    Output Voltage
    • :350 mVpp to 600 mVpp
