  • ZNA (High-end Network Analyzer)

    Frequency range
    • :10 MHz to 26.5 GHz / 43.5 GHz
    Dynamic Range
    • :Up to 146 dB (typ.)
    Output power
    • :Up to + 20 dBm (typ.)
    Power range
    • :Up to 100 dB
    IF Bandwidth
    • :1 Hz to 30 MHz
  • ZVA (High-end Network Analyzer)

    Frequency Range
    • :300 kHz to 8 / 24 / 40 / 50 / 67 / 110 GHz
    Output Power
    • :18 dBm
    Power Sweep
    • :Typ. 50 dB
    IF Bandwidth
    • :1 Hz to 5 MHz
    Accuracy of Transmission
    • :< 0.2 dB
  • ZNB (Fastest Network Analyzer)

    Frequency Range
    • :9 kHz to 4.5 / 8.5 / 20 / 40 GHz
    Output Power
    • :15 dBm
    Number of Point
    • :100,001 per trace
    IF Bandwidth
    • :1 Hz to 10 MHz
    Measurement time
    • :< 2.5 us per point
  • ZNC (Low Cost Network Analyzer)

    Frequency Range
    • :9 kHz to 3 GHz
    Output Power
    • :13 dBm
    Dynamic Range
    • :
    Number of Point
    • :5,001 per trace
    IF Bandwidth
    • :1 HZ to 300 kHz

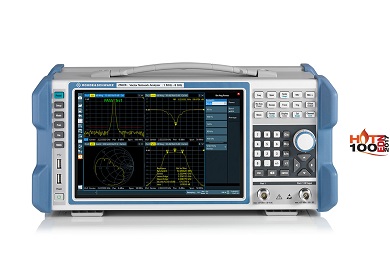

  • ZNL (Vector Network Analyzer)

    Frequency Range
    • :5 kHz to 3 GHz / 6 GHz
    Dynamic Range
    • : >120 dB (spec.); typ. >130 dB
    Output Power
    • :?40 dBm to typ. + 3 dBm
    IF Bandwidth
    • :1 Hz to 500 kHz
    Display
    • :10.1

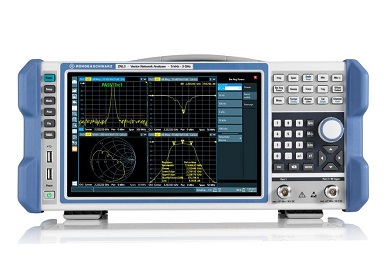

  • ZNLE (Vector Network Analyzer)

    Frequency Range
    • :1 MHz to 3 GHz / 6 GHz
    Dynamic Range
    • :up to > 120 dB (typ.)
    Output power
    • :up to +2 dBm (typ.)
    Measurement points
    • :1 to 5001
    Display
    • :10.1
  • ZND (Cost performance Network Analyzer)

    Frequency Range
    • :100 kHz to 4.5 / 8.5 GHz
    Output Power
    • :+3 dBm
    Number of Point
    • :5,001 per trace
    IF Bandwidth
    • :1 Hz to 300 kHz
    Measurement time
    • :< 10 us

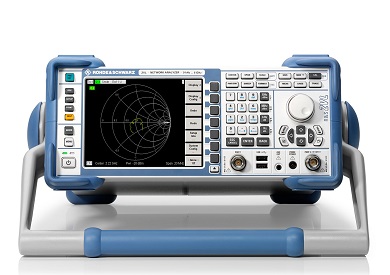

  • ZVL (Network+Spectrum Analyzer)

    Frequency Range
    • :9 kHz to 3 / 6 / 13.6 GHz
    Output Power
    • :10 dBm
    Dynamic Range
    • :Typ. > 123 dBm
    Number of Point
    • :2 to 4001
    Battery
    • :Yes

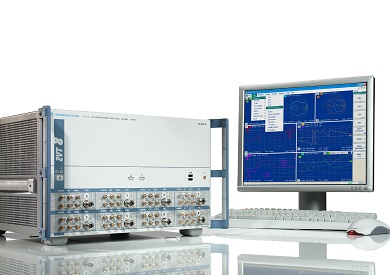

  • ZVT (Multi-port Network Analyzer)

    Frequency Range
    • :300 kHz to 8 / 20 GHz
    Port Number
    • :Up to 8 Port
    Power Resolution
    • :0.01 dB
    IF Bandwidth
    • :1 HZ to 1 MHz
    Measurement time
    • :< 6 us

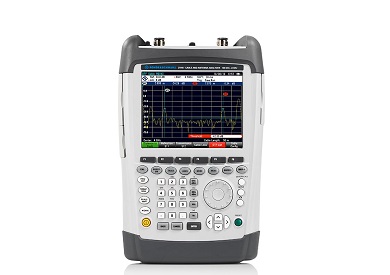

  • ZVH 휴대용 네트워크 분석기

    Frequency Range
    • :100 kHz to 3.6 GHz / 8 GHz
    Output Power
    • :0 dBm to - 40dBm in 1dB step
    Dynamic Range
    • :100 dBm typ.
    Number of Point
    • :631
    Spurious Signal Level
    • :+17 dBm
